org.eclipse.net4j.buffer
Interface IBuffer

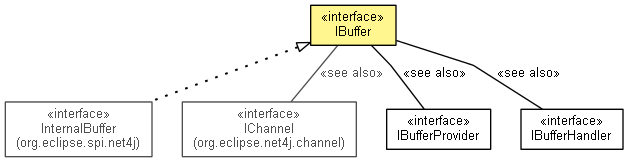

All Known Subinterfaces:

InternalBuffer

public interface IBuffer

Basic unit of transport in Net4j.

A buffer is well prepared for the usage with asynchronous IChannels but can also be used with pure SocketChannels. All methods of IBuffer are non-blocking.

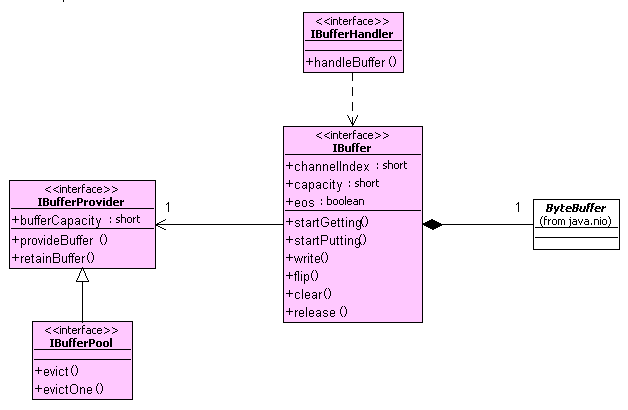

Usually buffers are obtained from a IBufferProvider. Buffers can be accessed, passed around and finally released to their original provider. The capacity of a buffer is determined by its provider.

In addition to its payload data each buffer contains an internal header of four bytes, two of them representing a channel identifier the other two of them denoting the length of the payload data. The payload data may be accessed through a ByteBuffer.

This interface is not intended to be implemented by clients.

An example for putting values into a buffer and writing it to a SocketChannel:

 // Obtain a fresh buffer
 Buffer buffer = bufferProvider.getBuffer(); // Start filling the buffer for channelID 4711 ByteBuffer byteBuffer =
 buffer.startPutting(4711); byteBuffer.putDouble(15.47); // Write the contents of the Buffer to a // SocketChannel
 without blocking while (!buffer.write(socketChannel)) { // Do something else }


 // Obtain a fresh buffer
 Buffer buffer = bufferProvider.getBuffer();

 // Read the contents of the Buffer from a SocketChannel without blocking
 ByteBuffer byteBuffer;
 while ((byteBuffer = buffer.startGetting(socketChannel)) == null)
 {
   // Do something else
 }

 // Access the contents of the buffer and release it to its provider
 double value = byteBuffer.getDouble();
 buffer.release();


See Also:

IBufferProvider, IChannel.sendBuffer(IBuffer), IChannel.setReceiveHandler(IBufferHandler), IBufferHandler.handleBuffer(IBuffer)

No Implement

This interface is not intended to be implemented by clients.

No Extend

This interface is not intended to be extended by clients.

NO_CHANNEL

static final short NO_CHANNEL

Possible argument value of startPutting(short) and possible return value of getChannelID() that indicates that this buffer is not intended to be passed to a SocketChannel.

See Also:

Constant Field Values

MIN_CHANNEL

static final short MIN_CHANNEL

Since:

2.0

See Also:

Constant Field Values

MAX_CHANNEL

static final short MAX_CHANNEL

Since:

2.0

See Also:

Constant Field Values

HEADER_SIZE

static final short HEADER_SIZE

See Also:

Constant Field Values

getBufferProvider

IBufferProvider getBufferProvider()

Returns the IBufferProvider that has provided this buffer and that this buffer will be returned to when its release() method is called.

getChannelID

short getChannelID()

Returns the channel index value stored in the header of this buffer.

Since:

2.0

getCapacity

short getCapacity()

Returns the capacity of this buffer.

The capacity of this buffer is equal to the capacity of the IBufferProvider that has provided this buffer.

getState

BufferState getState()

Returns the internal state of this buffer.

startGetting

ByteBuffer startGetting(SocketChannel socketChannel)
                        throws IllegalStateException,
                               IOException

Tries to read a ByteBuffer from a SocketChannel that can be used for getting data.

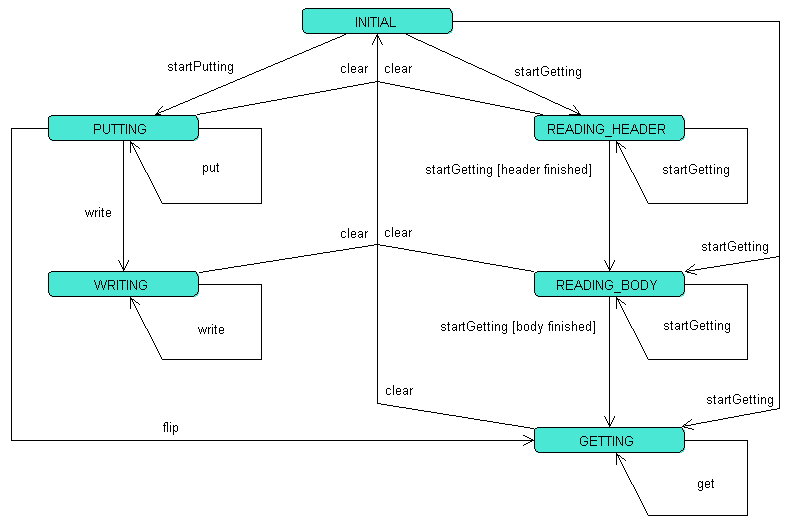

This method is non-blocking and it can be necessary to repeatedly call it. If it was not possible to read a complete header from the SocketChannel null is returned and the state of this buffer is READING_HEADER. If it was not possible to read a complete body from the SocketChannel null is returned and the state of this buffer is READING_BODY.

If a ByteBuffer is returned it may only be used for getting data. It is left to the responsibility of the caller that only the following methods of that ByteBuffer are used:

• ByteBuffer.get()
• ByteBuffer.get(byte[])
• ByteBuffer.get(int)
• ByteBuffer.get(byte[], int, int)
• ByteBuffer.getChar()
• ByteBuffer.getChar(int)
• ByteBuffer.getDouble()
• ByteBuffer.getDouble(int)
• ByteBuffer.getFloat()
• ByteBuffer.getFloat(int)
• ByteBuffer.getInt()
• ByteBuffer.getInt(int)
• ByteBuffer.getLong()
• ByteBuffer.getLong(int)
• ByteBuffer.getShort()
• ByteBuffer.getShort(int)
• all other methods that do not influence Buffer.position(), Buffer.limit() and Buffer.capacity()

Parameters:

socketChannel - The socketChannel to read the ByteBuffer from.

Returns:

A ByteBuffer that can be used for getting data if it was possible to completely read the data from the given SocketChannel, null otherwise.

Throws:

IllegalStateException - If the state of this buffer is not INITIAL, READING_HEADER or READING_BODY.

IOException - If the SocketChannel has been closed or discovers other I/O problems.

startPutting

ByteBuffer startPutting(short channelID)
                        throws IllegalStateException

Returns a ByteBuffer that can be used for putting data.

Turns the state of this buffer into PUTTING.

The returned ByteBuffer may only be used for putting data. It is left to the responsibility of the caller that only the following methods of that ByteBuffer are used:

• ByteBuffer.put(byte)
• ByteBuffer.put(byte[])
• ByteBuffer.put(ByteBuffer)
• ByteBuffer.put(int, byte)
• ByteBuffer.put(byte[], int, int)
• ByteBuffer.putChar(char)
• ByteBuffer.putChar(int, char)
• ByteBuffer.putDouble(double)
• ByteBuffer.putDouble(int, double)
• ByteBuffer.putFloat(float)
• ByteBuffer.putFloat(int, float)
• ByteBuffer.putInt(int)
• ByteBuffer.putInt(int, int)
• ByteBuffer.putLong(long)
• ByteBuffer.putLong(int, long)
• ByteBuffer.putShort(short)
• ByteBuffer.putShort(int, short)
• all other methods that do not influence Buffer.position(), Buffer.limit() and Buffer.capacity()

Parameters:

channelID - The index of an IChannel that this buffer is intended to be passed to later or NO_CHANNEL .

Returns:

A ByteBuffer that can be used for putting data.

Throws:

IllegalStateException - If the state of this buffer is not INITIAL (PUTTING is allowed but meaningless if and only if the given channelID is equal to the existing channelID of this buffer).

write

boolean write(SocketChannel socketChannel)
              throws IllegalStateException,
                     IOException

Tries to write the data of this buffer to a SocketChannel.

This method is non-blocking and it can be necessary to repeatedly call it. If it was not possible to completely write the data to the SocketChannel false is returned and the state of this buffer remains WRITING.

Parameters:

socketChannel - The socketChannel to write the data to.

Returns:

true if it was possible to completely write the data to the SocketChannel, false otherwise.

Throws:

IllegalStateException - If the state of this buffer is not PUTTING or WRITING.

IOException - If the SocketChannel has been closed or discovers other I/O problems.

flip

void flip()
          throws IllegalStateException

Turns the state of this buffer from PUTTING into GETTING.

Throws:

IllegalStateException - If the state of this buffer is not PUTTING.

getByteBuffer

ByteBuffer getByteBuffer()
                         throws IllegalStateException

Returns the ByteBuffer that can be used for putting or getting data.

Throws:

IllegalStateException - If the state of this buffer is not PUTTING or GETTING.

isEOS

boolean isEOS()

Returns the End Of Stream flag to indicate whether this buffer is the last buffer in a stream of buffers.

setEOS

void setEOS(boolean eos)

Sets the End Of Stream flag to indicate whether this buffer is the last buffer in a stream of buffers.

release

void release()

Releases this buffer to its original IBufferProvider.

clear

void clear()

Turns the state of this buffer from any state into INITIAL.

formatContent

String formatContent(boolean showHeader)

getErrorHandler

IErrorHandler getErrorHandler()

Since:

2.0

setErrorHandler

void setErrorHandler(IErrorHandler errorHandler)

Since:

2.0
