org.eclipse.net4j.connector
Interface IConnector

All Superinterfaces:
Closeable, IChannelMultiplexer, IContainer<IChannel>, ILocationAware, INotifier, IUserAware
All Known Subinterfaces:
IHTTPConnector, IJVMConnector, InternalConnector, ITCPConnector
All Known Implementing Classes:
Connector
public interface IConnector
extends IChannelMultiplexer, IUserAware, Closeable

One endpoint of a physical connection of arbitrary nature between two communicating parties. A IConnector encapsulates the process of establishing and closing such connections and has a location of CLIENT or SERVER with respect to this process. Once a connection is established either party can use its connector to open multiple IChannels to asynchronously exchange IBuffers.

This interface is not intended to be implemented by clients. Providers of connectors for new physical connection types have to implement org.eclipse.internal.net4j.connector.InternalConnector.

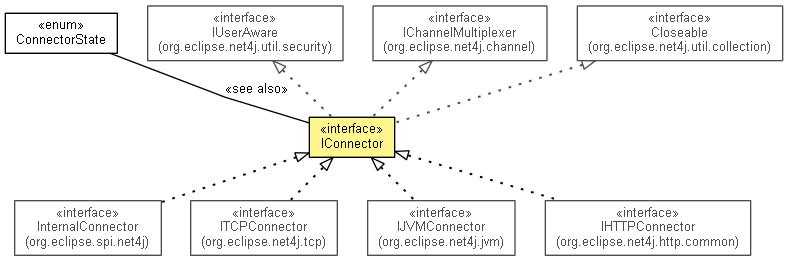

Class Diagram:

Sequence Diagram: Communication Process

No Implement
This interface is not intended to be implemented by clients.

Nested Class Summary

Nested classes/interfaces inherited from interface org.eclipse.net4j.ILocationAware
ILocationAware.Location

Nested classes/interfaces inherited from interface org.eclipse.net4j.util.container.IContainer
IContainer.Modifiable<E>

Field Summary
static long NO_TIMEOUT


Fields inherited from interface org.eclipse.net4j.channel.IChannelMultiplexer
DEFAULT_OPEN_CHANNEL_TIMEOUT, NO_CHANNEL_TIMEOUT

Method Summary
 void connect()
          Synchronous connect with infinite timeout value.
 void connect(long timeout)
          Synchronous connect.
 void connectAsync()
          Asynchronous connect.
 ConnectorState getState()
          Returns the current state of this connector.
 String getURL()

 boolean isConnected()
          Same as getState() == ConnectorState.CONNECTED.
 void waitForConnection(long timeout)
          Blocks until isConnected() == true or the given timeout expired.

Methods inherited from interface org.eclipse.net4j.channel.IChannelMultiplexer
getChannels, getOpenChannelTimeout, openChannel, openChannel, openChannel, setOpenChannelTimeout

Methods inherited from interface org.eclipse.net4j.ILocationAware
getLocation, isClient, isServer

Methods inherited from interface org.eclipse.net4j.util.container.IContainer
getElements, isEmpty

Methods inherited from interface org.eclipse.net4j.util.event.INotifier
addListener, getListeners, hasListeners, removeListener

Methods inherited from interface org.eclipse.net4j.util.security.IUserAware
getUserID

Methods inherited from interface org.eclipse.net4j.util.collection.Closeable
close, isClosed


Field Detail

NO_TIMEOUT

static final long NO_TIMEOUT
Since:
2.0
See Also:
Constant Field Values
Method Detail

getURL

String getURL()

getState

ConnectorState getState()
Returns the current state of this connector.

isConnected

boolean isConnected()
Same as getState() == ConnectorState.CONNECTED.

connect

void connect()
             throws ConnectorException
Synchronous connect with infinite timeout value. Same as connect(NO_TIMEOUT).

Throws:
ConnectorException
Since:
4.0

connect

void connect(long timeout)
             throws ConnectorException
Synchronous connect. Blocks until isConnected() == true or the given timeout expired.

Parameters:
timeout - The maximum number of milli seconds to block or NO_TIMEOUT to block indefinetely in case no connection occurs.
Throws:
ConnectorException
Since:
4.0

connectAsync

void connectAsync()
                  throws ConnectorException
Asynchronous connect. May leave this IConnector in a state where isConnected() == false .

Throws:
ConnectorException
See Also:
waitForConnection(long), connect(long)

waitForConnection

void waitForConnection(long timeout)
                       throws ConnectorException
Blocks until isConnected() == true or the given timeout expired.

Parameters:
timeout - The maximum number of milli seconds to block or NO_TIMEOUT to block indefinetely in case no connection occurs.
Throws:
ConnectorException
Since:
4.0
