CDOServerExporter.XML (CDO Model Repository Documentation)

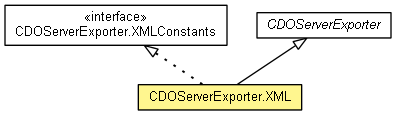

java.lang.Object
- org.eclipse.emf.cdo.server.CDOServerExporter<XMLOutput>
- - org.eclipse.emf.cdo.server.CDOServerExporter.XML

All Implemented Interfaces:

CDOServerExporter.XMLConstants

Enclosing class:

CDOServerExporter<OUT>
```
public static class CDOServerExporter.XML
extends CDOServerExporter<XMLOutput>
implements CDOServerExporter.XMLConstants
```
An exporter that creates XML output suitable to be interpreted by an XML importer.

Nested Class Summary
- Nested classes/interfaces inherited from class org.eclipse.emf.cdo.server.CDOServerExporter
  CDOServerExporter.XML, CDOServerExporter.XMLConstants

Field Summary
- Fields inherited from interface org.eclipse.emf.cdo.server.CDOServerExporter.XMLConstants
  BLOB, BRANCH, BRANCH_ID, BRANCH_NAME, BRANCH_PARENT, BRANCH_TIME, CLOB, COMMIT, COMMIT_BRANCH, COMMIT_COMMENT, COMMIT_PREVIOUS, COMMIT_TIME, COMMIT_USER, COMMITS, FEATURE, FEATURE_ID, FEATURE_INNER_FEATURE, FEATURE_INNER_TYPE, FEATURE_NAME, FEATURE_SIZE, FEATURE_TYPE, FEATURE_VALUE, INSTANCES, LOB_ID, LOB_SIZE, LOBS, MODELS, PACKAGE_INFO, PACKAGE_INFO_URI, PACKAGE_UNIT, PACKAGE_UNIT_DATA, PACKAGE_UNIT_ID, PACKAGE_UNIT_TIME, PACKAGE_UNIT_TYPE, REPOSITORY, REPOSITORY_COMMITTED, REPOSITORY_CREATED, REPOSITORY_NAME, REPOSITORY_ROOT, REPOSITORY_UUID, REVISION, REVISION_CLASS, REVISION_CONTAINER, REVISION_FEATURE, REVISION_ID, REVISION_RESOURCE, REVISION_REVISED, REVISION_TIME, REVISION_VERSION, TYPE_BLOB, TYPE_CLOB, TYPE_FEATURE_MAP

Constructor Summary

Constructors
Constructor and Description

CDOServerExporter.XML(IRepository repository)

Constructors
Constructor and Description
`CDOServerExporter.XML(IRepository repository)`

Method Summary

Methods
Modifier and Type	Method and Description
`protected XMLOutput`	`createOutput(OutputStream out)`
`protected void`	`endPackageUnit(XMLOutput out)`
`protected void`	`exportAll(XMLOutput out)`
`protected void`	`exportBranch(XMLOutput out, CDOBranch branch)`
`protected void`	`exportBranches(XMLOutput out)`
`protected void`	`exportCommit(XMLOutput out, CDOCommitInfo commitInfo)`
`protected void`	`exportCommits(XMLOutput out)`
`protected void`	`exportFeature(XMLOutput out, org.eclipse.emf.ecore.EStructuralFeature feature, Object value)`
`protected void`	`exportFeature(XMLOutput out, org.eclipse.emf.ecore.EStructuralFeature feature, String featureType, Object value)`
`protected void`	`exportLobs(XMLOutput out)`
`protected void`	`exportPackageInfo(XMLOutput out, String uri)`
`protected void`	`exportPackages(XMLOutput out)`
`protected void`	`exportRevision(XMLOutput out, CDORevision revision)`
`protected OutputStream`	`startBlob(XMLOutput out, byte[] id, long size)`
`protected Writer`	`startClob(XMLOutput out, byte[] id, long size)`
`protected void`	`startPackageUnit(XMLOutput out, String id, CDOPackageUnit.Type type, long time, String data)`
`protected String`	`str(CDOID id)`
`protected String`	`type(Object value)`

Methods inherited from class org.eclipse.emf.cdo.server.CDOServerExporter
exportRepository, exportRevisions, getRepository

Methods inherited from class java.lang.Object
clone, equals, finalize, getClass, hashCode, notify, notifyAll, toString, wait, wait, wait

Constructor Detail

CDOServerExporter.XML

public CDOServerExporter.XML(IRepository repository)

Method Detail

createOutput

protected final XMLOutput createOutput(OutputStream out)
                                throws Exception

Specified by:: createOutput in class CDOServerExporter<XMLOutput>
Throws:: Exception

exportAll

protected void exportAll(XMLOutput out)
                  throws Exception

Overrides:: exportAll in class CDOServerExporter<XMLOutput>
Throws:: Exception

exportPackages

protected void exportPackages(XMLOutput out)
                       throws Exception

Overrides:: exportPackages in class CDOServerExporter<XMLOutput>
Throws:: Exception

startPackageUnit

protected void startPackageUnit(XMLOutput out,
                    String id,
                    CDOPackageUnit.Type type,
                    long time,
                    String data)
                         throws Exception

Specified by:: startPackageUnit in class CDOServerExporter<XMLOutput>
Throws:: Exception

endPackageUnit
```
protected void endPackageUnit(XMLOutput out)
                       throws Exception
```
Specified by:

endPackageUnit in class CDOServerExporter<XMLOutput>

Throws:

Exception

exportPackageInfo

protected void exportPackageInfo(XMLOutput out,
                     String uri)
                          throws Exception

Specified by:: exportPackageInfo in class CDOServerExporter<XMLOutput>
Throws:: Exception

exportBranches

protected void exportBranches(XMLOutput out)
                       throws Exception

Overrides:: exportBranches in class CDOServerExporter<XMLOutput>
Throws:: Exception

exportBranch

protected void exportBranch(XMLOutput out,
                CDOBranch branch)
                     throws Exception

Overrides:: exportBranch in class CDOServerExporter<XMLOutput>
Throws:: Exception

exportRevision

protected void exportRevision(XMLOutput out,
                  CDORevision revision)
                       throws Exception

Specified by:: exportRevision in class CDOServerExporter<XMLOutput>
Throws:: Exception

exportFeature

protected void exportFeature(XMLOutput out,
                 org.eclipse.emf.ecore.EStructuralFeature feature,
                 Object value)
                      throws Exception

Throws:: Exception

exportFeature

protected void exportFeature(XMLOutput out,
                 org.eclipse.emf.ecore.EStructuralFeature feature,
                 String featureType,
                 Object value)
                      throws SAXException

Throws:: SAXException

exportLobs

protected void exportLobs(XMLOutput out)
                   throws Exception

Overrides:: exportLobs in class CDOServerExporter<XMLOutput>
Throws:: Exception

startBlob

protected OutputStream startBlob(XMLOutput out,
                     byte[] id,
                     long size)
                          throws Exception

Specified by:: startBlob in class CDOServerExporter<XMLOutput>
Throws:: Exception

startClob

protected Writer startClob(XMLOutput out,
               byte[] id,
               long size)
                    throws Exception

Specified by:: startClob in class CDOServerExporter<XMLOutput>
Throws:: Exception

exportCommits

protected void exportCommits(XMLOutput out)
                      throws Exception

Overrides:: exportCommits in class CDOServerExporter<XMLOutput>
Throws:: Exception

exportCommit

protected void exportCommit(XMLOutput out,
                CDOCommitInfo commitInfo)
                     throws Exception

Specified by:: exportCommit in class CDOServerExporter<XMLOutput>
Throws:: Exception

str
```
protected final String str(CDOID id)
```

type
```
protected String type(Object value)
```
